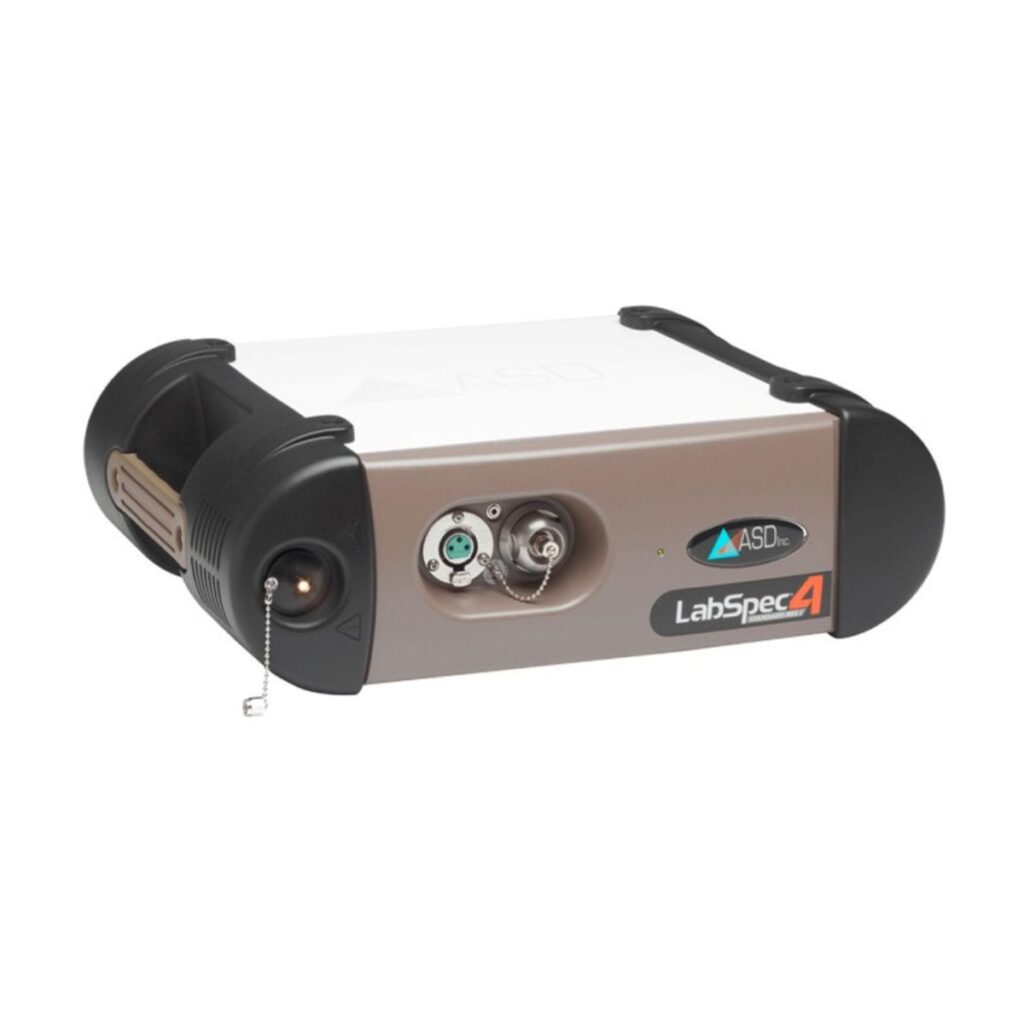

ASD – Labspec – NIR Analyzers
The ASD LabSpec line of laboratory instrumentation offers laboratory-grade performance in a ruggedized, portable design suitable for benchtop analysis or transport to the sample location. ASD LabSpec analytical instrumentation performs rapid, non-destructive materials analysis for qualitative and quantitative applications.
The ASD LabSpec 4 product line utilizes the same spectrometer configurations as ASD’s FieldSpec line of spectroradiometers, long recognized as the “gold standard” in portable near-infrared (NIR) field spectroscopy. Employing this state-of-the-art NIR technology, these portable lab instruments can quickly and nondestructively measure a wide range of materials with absolute precision.
The ASD LabSpec spectrometer is easily adaptable for a wide range of analytical applications. For those applications requiring a spectrophotometer, the ASD LabSpec is available with a built in fiber optic light source.
Optimized for rapid analysis, ASD LabSpec 4 spectrometers are the ideal analytical instruments for fast-moving laboratory environments, providing instant results with no sample preparation.
Technical Specifications
| Model | 4 Hi-Res Analytical Instrument | 4 Standard-Res Lab Analyzer |
| Wavelength range | 350-2500 nm | 350-2500 nm |
| Resolution | 3 nm @ 700 nm 6 nm @ 1400/2100 nm | 3 nm @ 700 nm 10 nm @ 1400/2100 nm |
| Scanning time | 100 milliseconds | 100 milliseconds |
| Signal-to-noise ratio | ||
| VNIR, SWIR 1, SWIR 2 | 9,000:1 @ 700 nm, 9,000:1 @ 1400 nm, 4,000:1 @ 2100 nm | 9,000:1 @ 700 nm, 9,000:1 @ 1400 nm, 4,000:1 @ 2100 nm |
| Photometric noise | ||
| VNIR, SWIR 1, SWIR 2 | 4.8 x 10-5 AU or 48 μAU@ 700 nm, 4.8 x 10-5 AU or 48 μAU@ 1400 nm, 1.1 x 10-4 AU or 110 μAU@ 2100 nm | 4.8 x 10-5 AU or 48 μAU@ 700 nm, 4.8 x 10-5 AU or 48 μAU@ 1400 nm, 1.1 x 10-4 AU or 110 μAU@ 2100 nm |
| CE certified | EN61010-1:2001 2nd Edition EN61326-1:2013 | EN61010-1:2001 2nd Edition EN61326-1:2013 |
| Dimensions (H X W X D) | 12.7 x 36.8 x 29.2 cm (5 x 14.5 x 11.5 in) | 12.7 x 36.8 x 29.2 cm (5 x 14.5 x 11.5 in) |
| Weight | 5.44 kg (12 lbs) | 5.44 kg (12 lbs) |
| Input power | AC/DC switching power supply or a sealed lead-acid gel battery | AC/DC switching power supply or a sealed lead-acid gel cell battery |
| AC input | 90-240 VAC, 50/60 Hz | 90-240 VAC, 50/60 Hz |
| DC input | 12 VDC, 60 W | 12 VDC, 60 W |
Available Models
The LabSpec® line of laboratory instrumentation offers laboratory-grade performance in a ruggedized, portable design suitable for benchtop analysis or transport to the sample location. LabSpec analytical instrumentation performs rapid, non-destructive materials analysis for qualitative and quantitative applications. The lab analyzer for fast, non-destructive analysis to optimize your workflow.
Superior spectral resolution for sharp feature recognition.
The LabSpec 4 Hi-Res analytical spectrometer is designed for analysis of materials that are characterized by sharp spectral features that may require more resolute spectral data for accurate detection and identification.
The 3 nm VNIR, 6 nm SWIR spectral resolution of the LabSpec 4 Hi-Res analytical instrument provides superior performance across the 350-2500 nm spectral range. The enhanced spectral resolution in the SWIR range (1001- 2500 nm) is particularly useful for detecting and identifying compounds with narrow spectral features in these longer wavelengths such as soil mineralogy, pharmaceuticals, cosmetics, plastics and petrochemicals.
Spectral data with 6 nm SWIR resolution provides a strong foundation for building accurate chemometric calibration models for quantitative and qualitative materials analysis. The spectrometer configuration delivers superior signal throughput and is compatible with all ASD bifurcated probes and lighted accessories.
The lab analyzer for fast, non-destructive analysis to optimize your workflow
The 3 nm VNIR, 10 nm SWIR spectral resolution of the LabSpec® 4 Standard-Res lab analyzer is ideal for precise spectral analysis of a wide range of materials. The 10 nm SWIR spectral resolution provides the basis for building accurate spectral models for chemometric quantitative and qualitative materials analysis. The spectrometer configuration delivers superior signal throughput and is compatible with all ASD bifurcated probes and lighted accessories.
The LabSpec 4 Standard-Res is powered directly from a standard AC connection or optionally with a portable lead-acid gel cell battery that is shipped standard with every instrument. Fiber optic cables are removable for interchangeability and easy transport.
Key Features
Labspec NIR Analyzers
- Evaluate hundreds of samples per day with high analytic throughput rates.
- Identify spectral characteristics of both liquids and solids in real-time.
- Non-destructive measurement means no sample preparation and allows for the reuse of the sample in other research.
- Measure multiple properties simultaneously through NIR energy that penetrates several millimeters into organic substances.
- Compatible with all ASD sampling accessories.
- Rapid analysis moves with the speed of production to evaluate incoming, in-process, or finished materials almost instantaneously.
Key Industries
- Aerospace
- Agriculture
- Automotive
- Biopharmaceutical and Biotechnology
- Chemical
- Construction
- Cosmetics & Personal Care
- Defense
- Die & Mould
- Education & Academics
- Electronics
- Energy
- Environmental
- Food & Beverage
- Luxury
- Machinery & Manufacturing
- Medical
- Oil & Gas
- Optical
- Paper & Wood
- Pharmaceutical
- Polymers, Plastics and Rubbers
- Powders & Pigments / Coating
- Railway
- Semiconductor, Solar & Electronics
- Service
- Textile
- Wholesale & Retail
Brand
ASD Inc., a Malvern PANalytical company, is the global leader in high-performance analytical instrumentation solutions, solving some of the most challenging real-world materials measurement problems. ASD spectrometers — unparalleled in providing laboratory-grade results in the field or on-site — are the instruments of choice for remote sensing, environmental sciences, agricultural, mining, pharmaceutical and pulp and paper industry applications, where results drive paradigm-changing insights, efficiency and profit.
