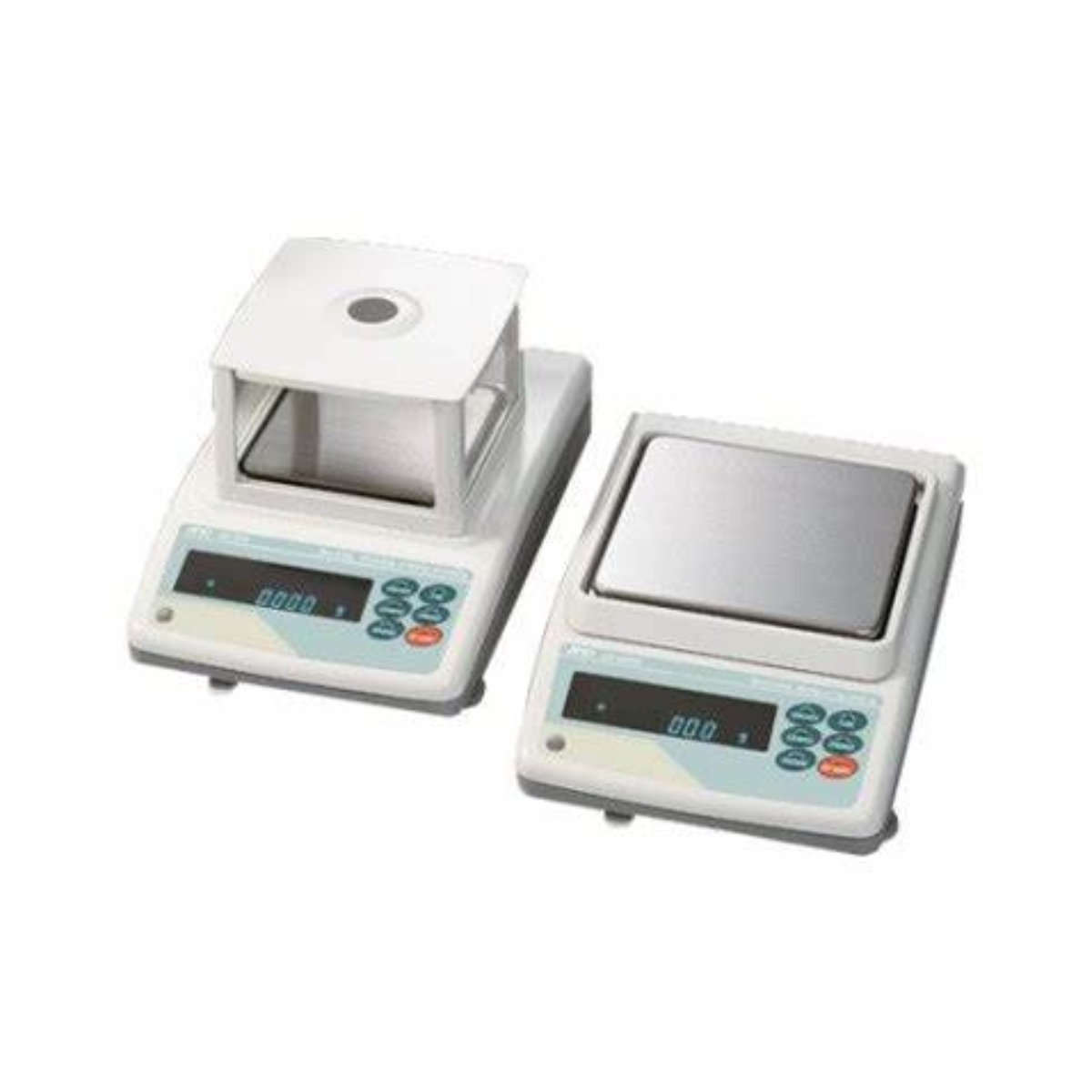

A&D – Precision Balances – GX/GF Series
The World’s Most User-Friendly Balances
Our Super Hybrid Sensor (SHS)*, which combines the best of magnetic force restoration and single point parallelogram load sensing technologies, offers you the ultimate in response speed – Just 1 Second!* Patent Approved
Technical Specifications
| Model | GX-200, 400, 600, 800, 1000 GF-200, 300, 400, 600, 800, 1000 | GX-2000, 4000, 6100 GF-1200, 2000, 3000, 4000, 6100 | GX-6000, 8000 GF-6000, 8000 |
|---|---|---|---|
| Weighing capacity | 210 – 1100 g | 1210 – 6100 g | 6100 – 8100 g |
| Minimum weighing value | 0.001 g | 0.01 g | 0.1 g |
| Counting mode: Minimum unit mass | 0.001 g | 0.01 g | 0.1 g |
| Counting mode: Number of samples | 10, 25, 50 or 100 pieces | 10, 25, 50 or 100 pieces | 10, 25, 50 or 100 pieces |
| Percent mode: Minimum 100% reference mass | 0.100 g | 1.00 g | 10.0 g |
| Percent mode: Minimum 100% display | 0.01%, 0.1%, 1% (depends on the reference mass stored) | 0.01%, 0.1%, 1% (depends on the reference mass stored) | 0.01%, 0.1%, 1% (depends on the reference mass stored) |
| Weighing pan | 128 mm × 128 mm | 165 mm × 165 mm | 165 mm × 165 mm |
Key Features
GX /GF Series
- Automatic calibration with an internal mass (GX)
- Automatic response adjustment (GX)
- Large bright Vacuum Fluorescent Display
- Data memory function
- Counting mode with the Automatic Counting Accuracy Improvement (ACAI) function
- Percent mode function
- Animal weighing (hold) function
- Comparator function with buzzer
